Combined physisorption and chemisorption analyzer for simultaneous BET surface area, pore size distribution, micropore analysis, and temperature-programmed characterization of porous materials.
The Sync 400 combines volumetric physisorption with chemisorption capabilities in a single instrument. It measures BET surface area, pore size distribution (BJH/DFT), micropore analysis (t-plot, DR), total pore volume, and full adsorption-desorption isotherms — plus TPR/TPO/TPD chemisorption experiments without sample transfer.

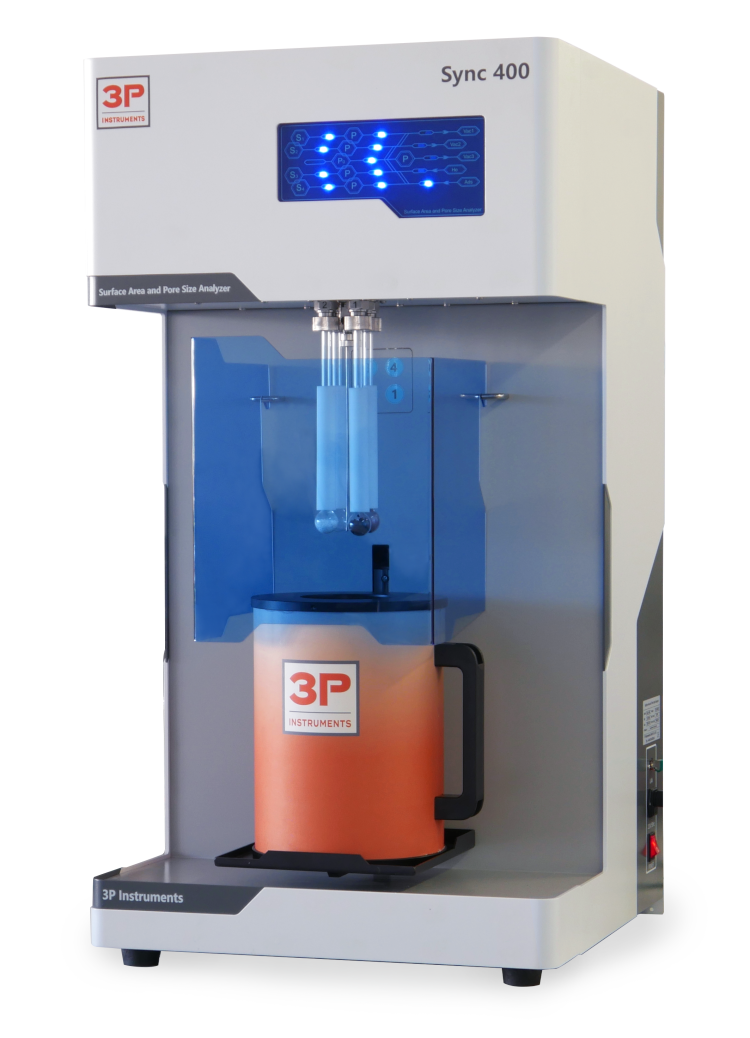

The Sync 400 from 3P Instruments is a versatile combined physisorption and chemisorption analyzer that eliminates the need for two separate instruments in a surface analysis laboratory. Its dual-port volumetric system measures full adsorption-desorption isotherms using nitrogen at 77 K, argon at 87 K, CO₂ at 273 K, or any other adsorptive gas — enabling comprehensive pore characterization from 0.35 nm (micropores) to 500 nm (large mesopores).
The same instrument also supports temperature-programmed chemisorption experiments using the integrated TCD detector and furnace, covering TPR, TPO, TPD, and pulse chemisorption protocols without any sample transfer — preserving sample integrity and saving valuable analysis time.
The 3P-Win software includes a complete library of DFT and NLDFT kernel models for state-of-the-art pore size distribution analysis of microporous and mesoporous materials, including zeolites, activated carbons, silicas, MOFs, and mixed oxide catalysts.
| Methods | BET, BJH, t-plot, DR, DA, DFT/NLDFT, TPR, TPO, TPD, chemisorption |
| Adsorptive Gases | N₂, Ar, CO₂, Kr, H₂, CO, C₃H₈, and more |
| Pressure Range | 10⁻⁸ – 1 bar (absolute) |
| Temperature | 77 K (cryo) to 1100°C (furnace) |
| Sample Ports | 2 independent ports |
| Vacuum | Turbo + diaphragm pump system |
| Detector | TCD for chemisorption gas phase |
| Pore Range | 0.35 nm – 500 nm (micropore to macropore) |
| BET Accuracy | < 1% repeatability |
| Software | 3P-Win (Windows), DFT kernels included |
| Degassing | Integrated, 12-port degassing station |
| Safety | Auto valve close on power failure |
