Versatile dual-method coating thickness gauge combining magnetic induction (Fe) and eddy current (NFe) in a single portable instrument for comprehensive surface quality control.

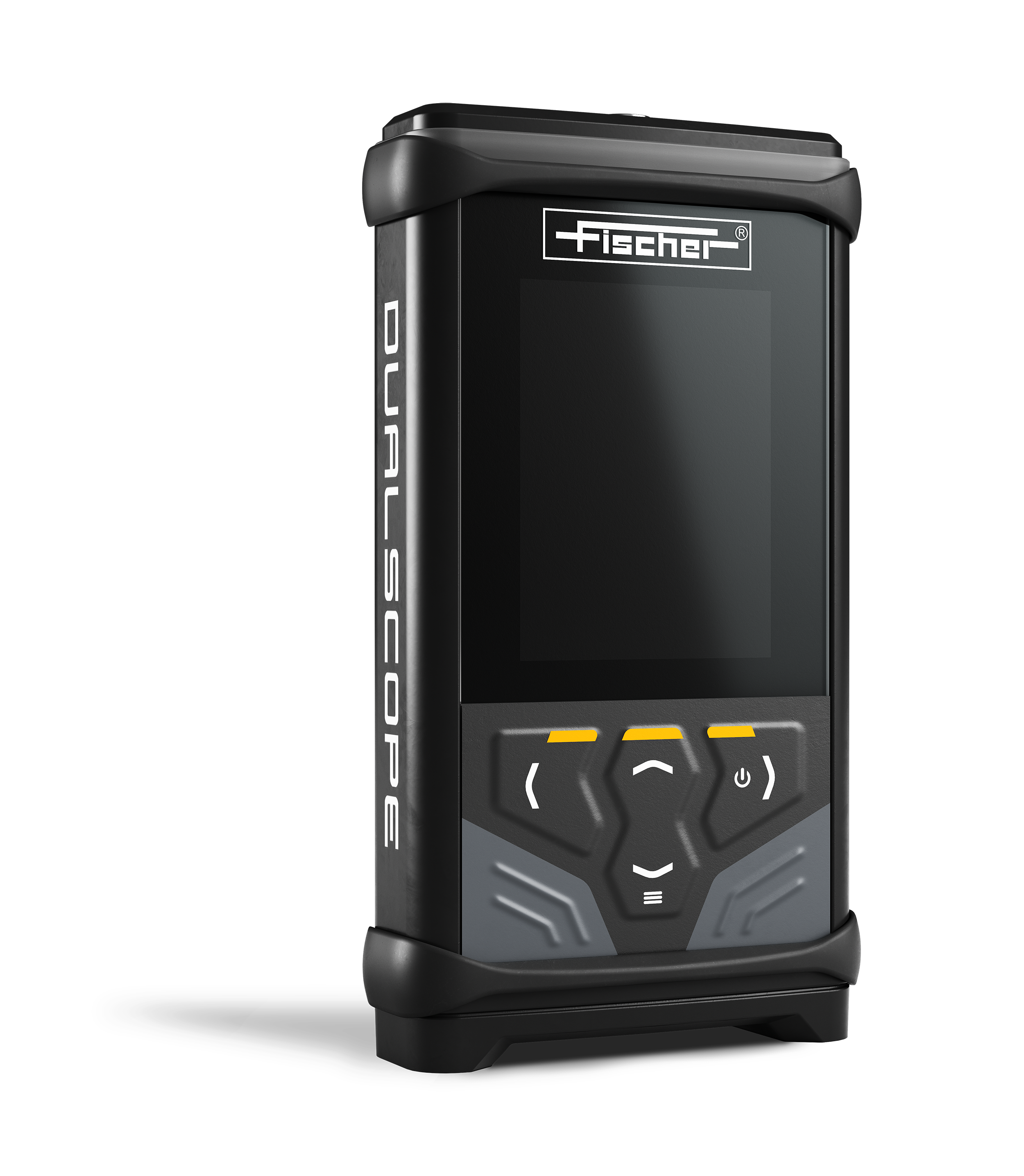

The DUALSCOPE® DMP 10-40 is the ultimate all-in-one coating thickness gauge, combining magnetic induction for measurements on ferrous substrates and eddy current for non-ferrous substrates in a single portable instrument. Auto-substrate detection switches methods automatically, making it the preferred choice for mixed production environments and field inspections.
The DUALSCOPE® DMP 10-40 from helmut fischer represents the pinnacle of portable coating thickness measurement versatility. By combining two measurement principles — magnetic induction and eddy current — in a single handheld instrument with automatic substrate detection, it eliminates the need for multiple gauges in mixed production or field environments.
When placed on a steel substrate, the instrument automatically activates the magnetic induction mode; on non-ferrous metals, it switches to eddy current mode. This seamless auto-switching is controlled by the combination probe FMP, which contains both sensor types in one compact housing.
The color TFT touchscreen provides an intuitive user interface with real-time statistical display, batch management, and customizable measurement limits with visual pass/fail indication. Optional Bluetooth connectivity enables wireless data transfer to smartphones and tablets for immediate field reporting.
| Methods | Magnetic Induction (Fe) + Eddy Current (NFe) |
| Auto Substrate Detection | Yes — automatic method switching |
| Fe Range | 0 – 2000 µm (on steel & iron) |
| NFe Range | 0 – 2000 µm (on Al, Cu, Brass, etc.) |
| Resolution | 0.1 µm (0–100 µm range) |
| Accuracy | ± (1% reading + 1 µm) |
| Probes | Combination probe FMP (standard), multiple options |
| Display | Color TFT touchscreen |
| Memory | 1000 readings with statistics |
| Interface | USB, Bluetooth (optional) |
| Software | FISCHER DataCenter |
| Battery | Rechargeable Li-ion, 20h operation |
| Standards | ISO 2178, ISO 2360, ASTM B499, ASTM B244 |
