Precision eddy current instrument for non-destructive coating thickness measurement on non-ferrous metal substrates including aluminum, copper, brass, and zinc.

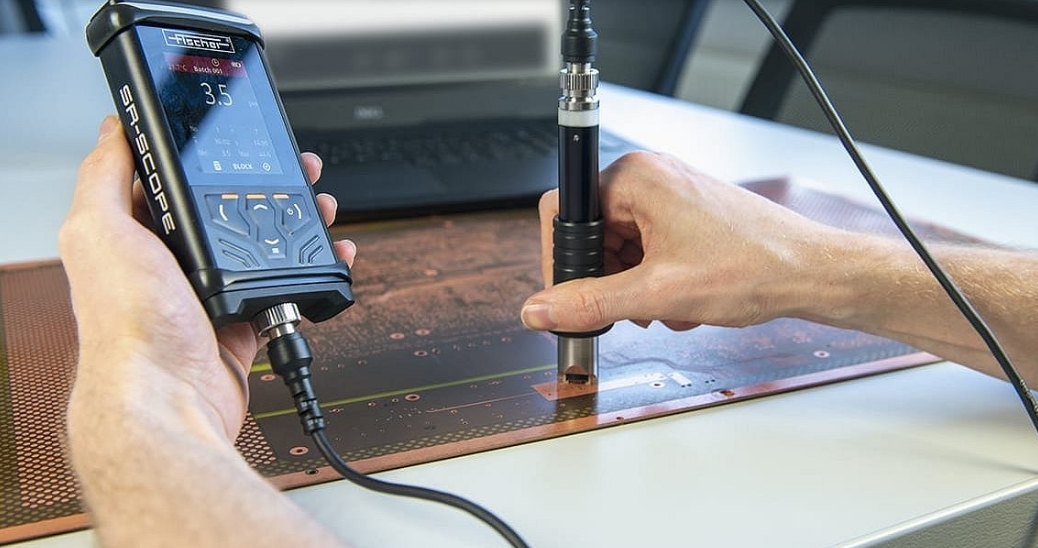

The SR-SCOPE® DMP30 uses the eddy current measurement principle to accurately measure the thickness of non-conductive coatings on non-ferrous metal substrates such as aluminum, copper, brass, and zinc alloys. With interchangeable probes and a rugged design, it is equally suited for laboratory and production line environments.
The SR-SCOPE® DMP30 from helmut fischer employs the eddy current principle to measure the thickness of non-conductive coatings on non-ferrous conductive substrates. When the probe is placed on the sample, it generates a high-frequency alternating magnetic field. The presence of a conductive substrate modifies the field in a way that is directly related to the distance between the probe coil and the substrate surface — i.e., the coating thickness.
This non-destructive technique works without direct electrical contact and requires no coupling medium, making it fast, clean, and suitable for delicate or production-sensitive surfaces. The probe range covers aluminum, copper, brass, bronze, zinc, titanium, and other non-ferrous metals.

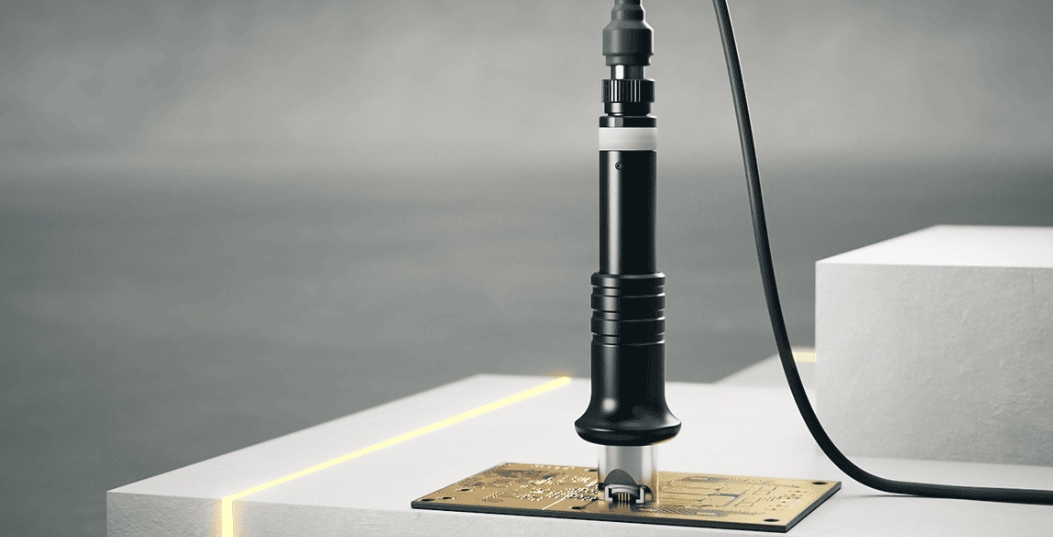

The DMP30 platform accepts multiple probe types optimized for different measurement scenarios — flat surfaces, curved geometries, and small measurement areas — providing the flexibility needed for diverse industrial applications.
| Measurement Principle | Eddy Current |
| Substrate | Non-ferrous metals (Al, Cu, Brass, Zn, Ti, etc.) |
| Coating | Non-conductive coatings (paint, anodize, lacquer, powder coat) |
| Measurement Range | 0 – 2000 µm |
| Resolution | 0.1 µm (below 100 µm) |
| Probes | EA series: standard, small-area, curved surface |
| Display | LCD with backlight |
| Memory | 1000 measurement values |
| Interface | USB, RS-232 |
| Software | FISCHER DataCenter |
| Battery | 4× AA batteries / mains adapter |
| Standards | ISO 2360, ASTM B244, DIN EN ISO 2360 |
