Non-destructive 3D X-ray imaging system delivering sub-micron resolution for internal structure visualization of materials, components, and biological samples.
The TESCAN Micro-CT delivers high-resolution 3D X-ray imaging for non-destructive characterization of internal structures. With sub-micron voxel resolution and a wide range of sample sizes, it is the ideal solution for materials research, industrial inspection, geology, and life sciences.

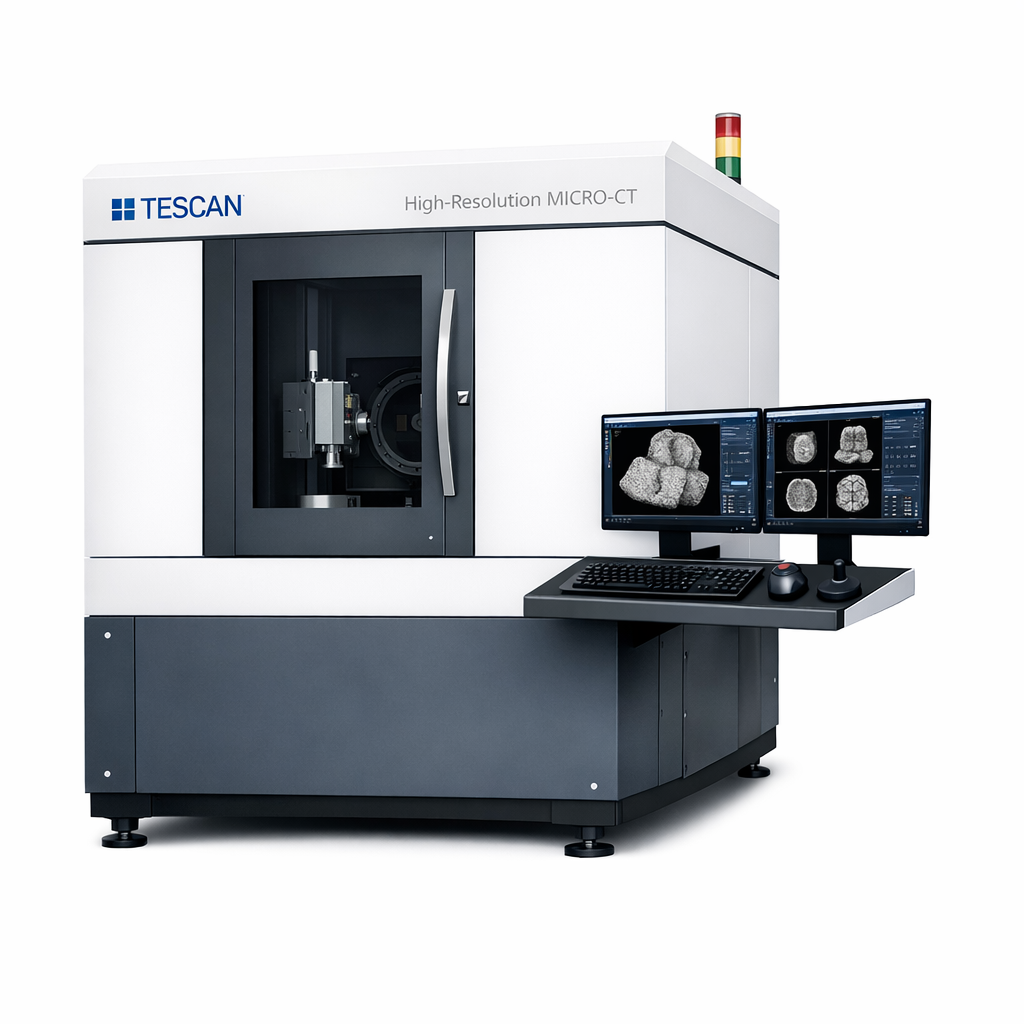

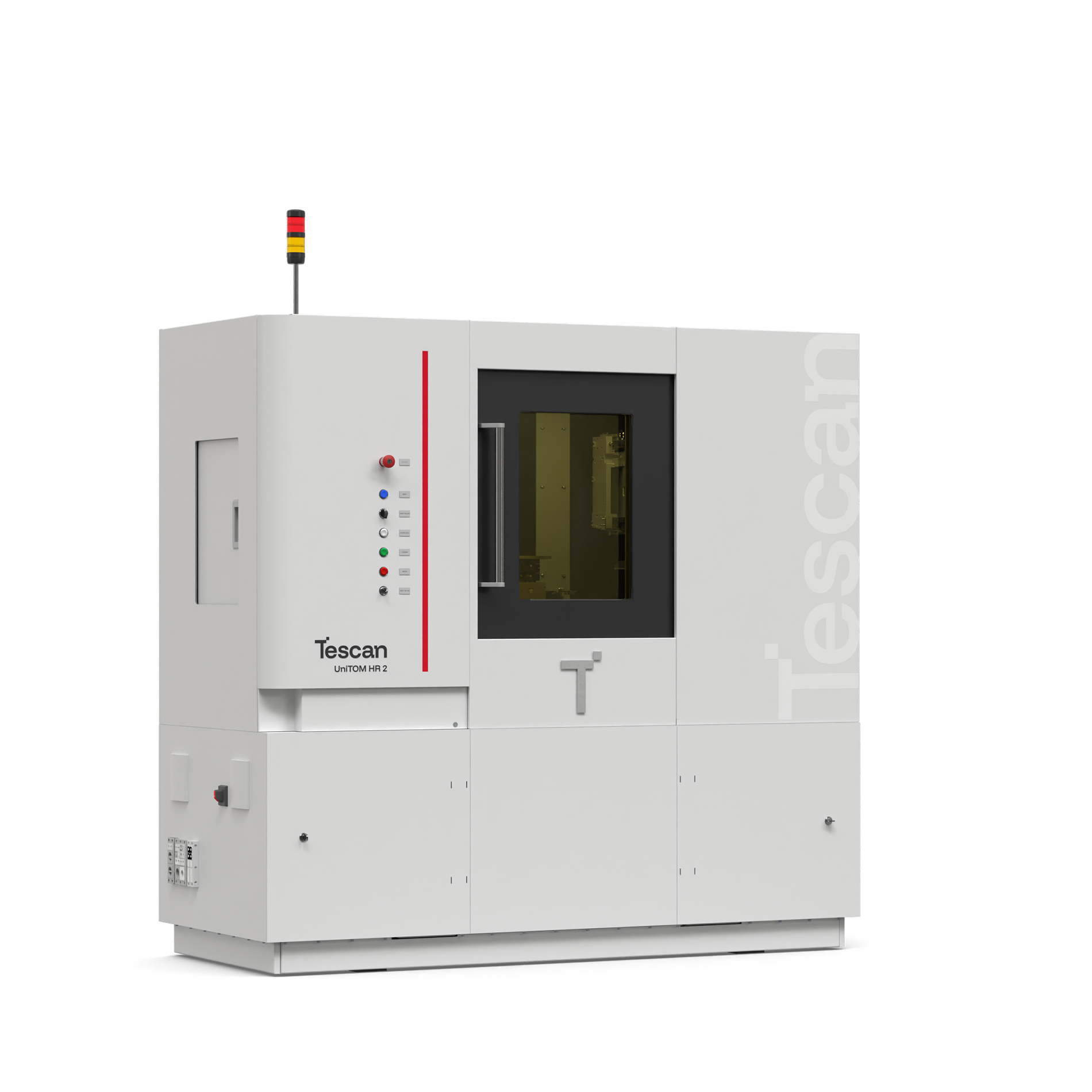

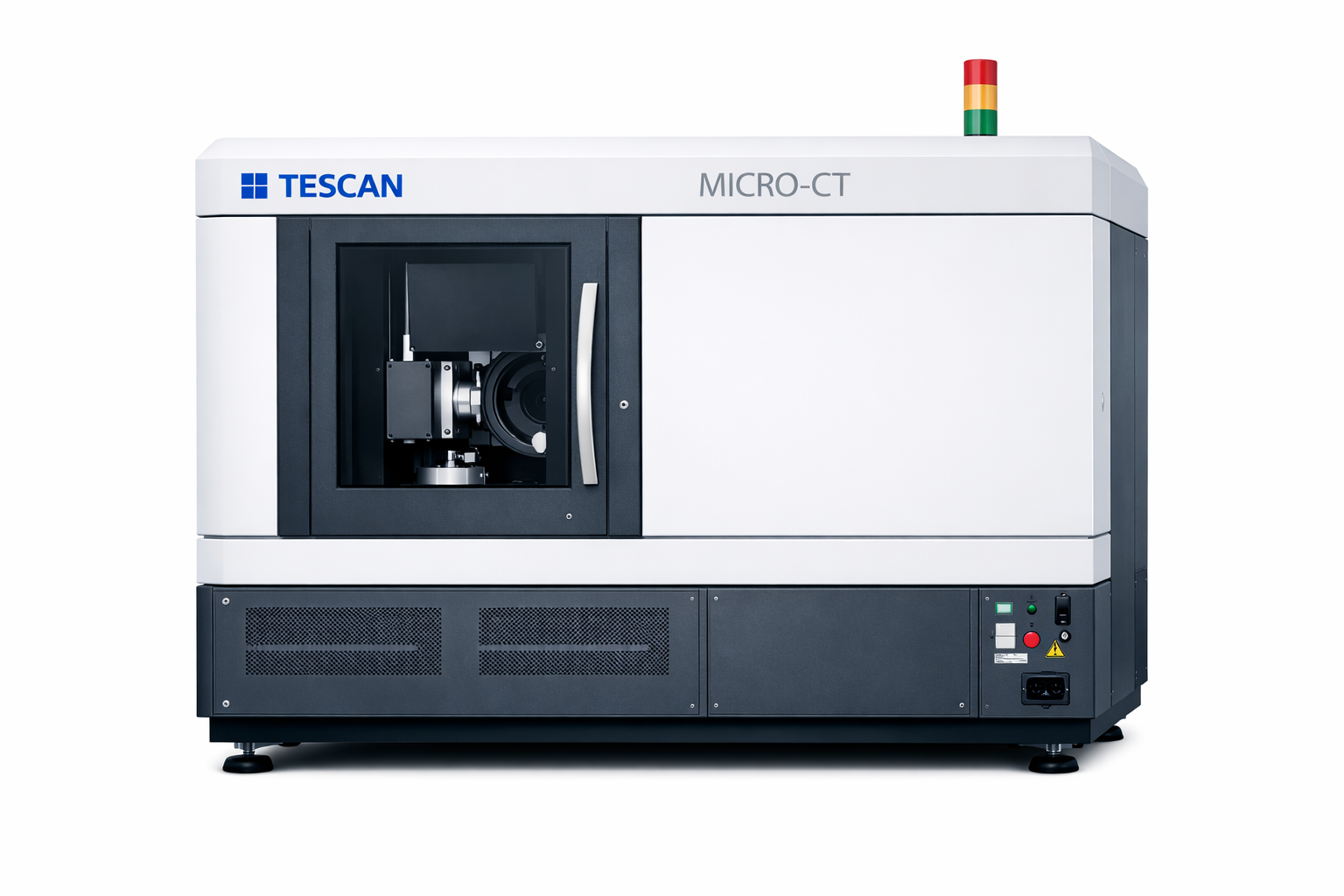

The TESCAN Micro-CT is a laboratory-scale X-ray computed tomography system designed for high-resolution, non-destructive 3D imaging of samples across a wide range of sizes — from a few millimeters to over 150 mm in diameter. Using an advanced nano-focus X-ray source and a high-sensitivity flat panel detector, the system acquires thousands of 2D projection images from multiple angles.
These projections are then reconstructed into a fully 3D volumetric dataset using state-of-the-art algorithms including filtered back-projection (FDK) and iterative reconstruction techniques. The resulting 3D volume can be virtually sliced in any direction and quantitatively analyzed.
The system is fully modular, supporting optional in-situ mechanical, thermal, and environmental stages for 4D time-resolved CT experiments.
| Spatial Resolution | Down to 0.4 µm (voxel size) |
| X-ray Source | Nano-focus / micro-focus (dual-target) |
| X-ray Energy | Up to 160 kV, 25 W |
| Detector | High-sensitivity flat panel / CCD |
| Sample Size | Up to Ø 150 mm × 250 mm |
| Rotation | 360°, continuous or step-wise |
| Projections | Up to 3600 per scan |
| Reconstruction | FDK filtered back-projection + iterative |
| Scan Time | 1 min – several hours (resolution dependent) |
| Software | TESCAN XMReconstructor™ + Dragonfly |
| Temperature Control | Optional in-situ stage |
| Output Formats | TIFF, VGI, DICOM, STL |
